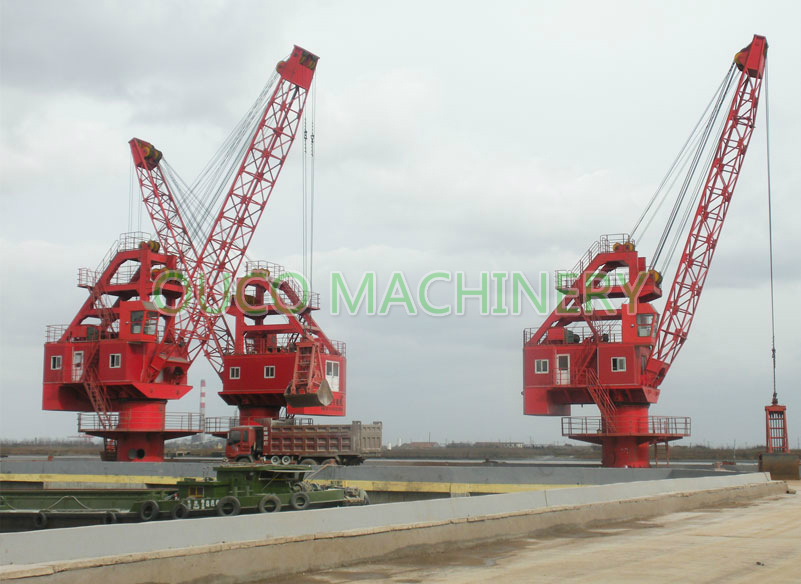

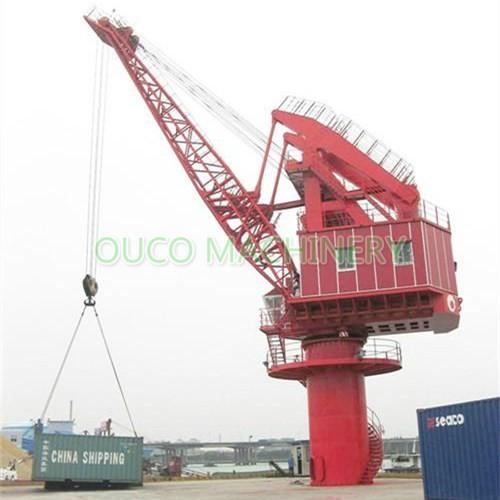

Stationary Port 25t 20m Fixed Lattice Boom Marine Cranes
Product Description
Stationary port crane is composed of frame, lifting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader device (grab, container spreader, hook), electrical equipment and other aiding devices for safety. The applied rigid rack and screw lever luffing mechanism makes constant working state.
Main Features:
1. Simple structure in linear type, easy in installation and maintenance.
2. Adopting advanced world- famous brand components in pneumatic parts, electric parts and operation parts.
3. High pressure double crank to control the opening and closing.
4. Running in a high automatization and intellectualization, no pollution
5. Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
Specification
| SWL | 25T |
| Max working radius | 20m |
| Min working radius | 8m |
| Hoisting speed | 10.5m |
| Slewing angle | 360º |
| Hoisting speed | 45m/min |
| Luffing speed | 20m/min |
| Slewing speed | 1.5rpm |
| Luffing motor | 1*37Kw |
| Hoisting motor | 2*110Kw |

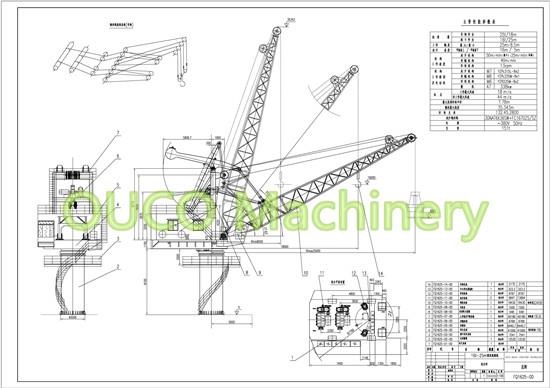

General Arrangement

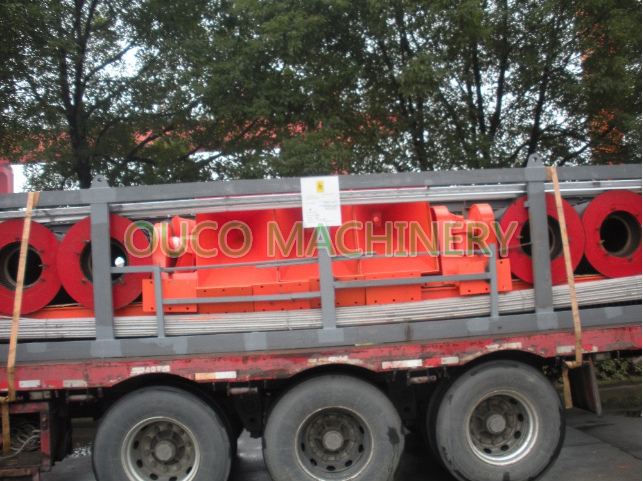

Transportation
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
