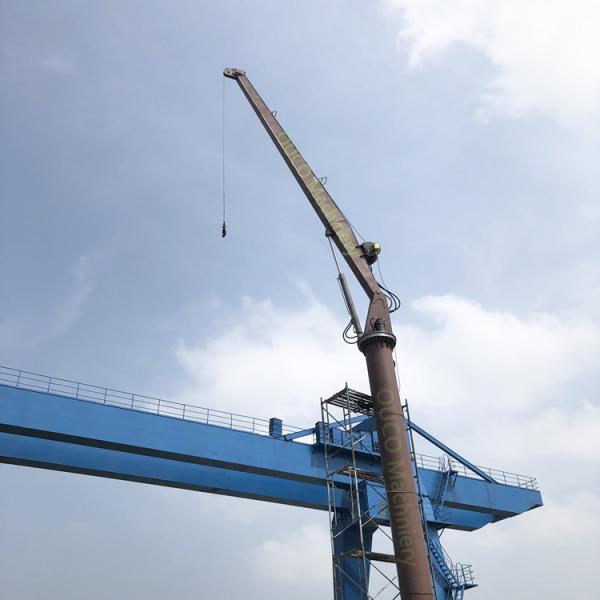

1.36t Compact 360 Degree Seaplane Lifting Marine Cranes
Product Description
The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of OUCO standard and pedestal diameter is depend on the SWL of the crane. The standard SB crane will supply with an operator platform. Operator cabin is optional.
The crane and all it associated components / equipment shall be designed in accordance to any leading classification societies which is upon request. The crane shall be tested and adjusted ready for installation by welding or bolting to vessel deck. Power connection shall be provided for electrical supply through integrated electrical slip rings.
SB series crane: End User Advantages
1. Compact design
2. Small footprint
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair
5.24 hours after sales searvices support.
Standard equipment
# 360 C* continuous rotation.
# -10 C*----+45 C* working temperature.
# certified A36 & S690 steel structure.
# pedestal ready for mounting or weld to vessel main structure .
# stainless steel grease nipples.
# precise step less speed control.
# simultaneous operations of 2 or more function.
# emergency for hydraulic stop device.
# visual and audible warning alarm
Specification
| 1 | SWL | 1.36 tons at 9.1 meters |
| 2 | Maximum Working Radius | 9.1 meters |
| 3 | Minimum Working Radius | 2.6 meters |
| 4 | Hoisting Height | 20 meters |
| 5 | Hoisting Speed | 18m/min |
| 6 | Slewing Angle | 270° |
| 7 | Luffing time | 20s |
| 8 | Protect Class | IP56 |
| 9 | Insukate Class | F |
| 10 | Working Type | S1 |
| 11 | Design Temperature | -10°~45° |
| 12 | Power Source | 380V, 50Hz |

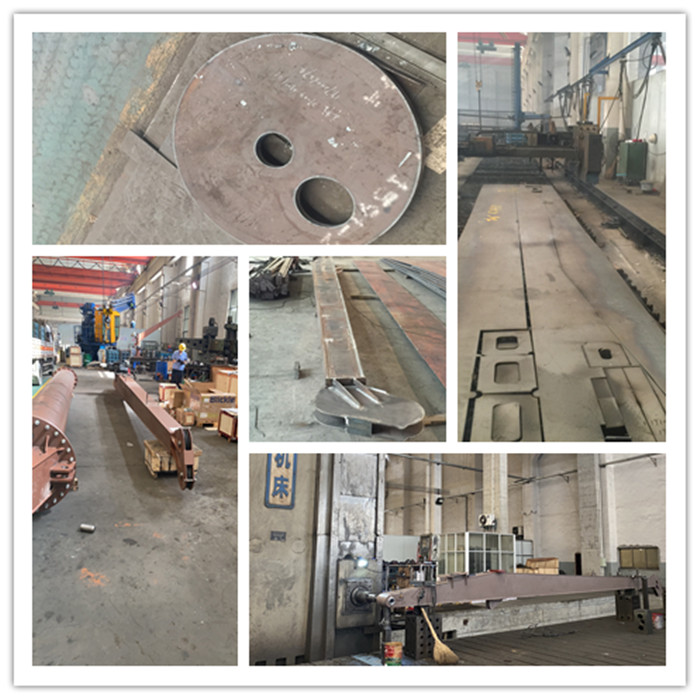

Process at OUCO Workshop

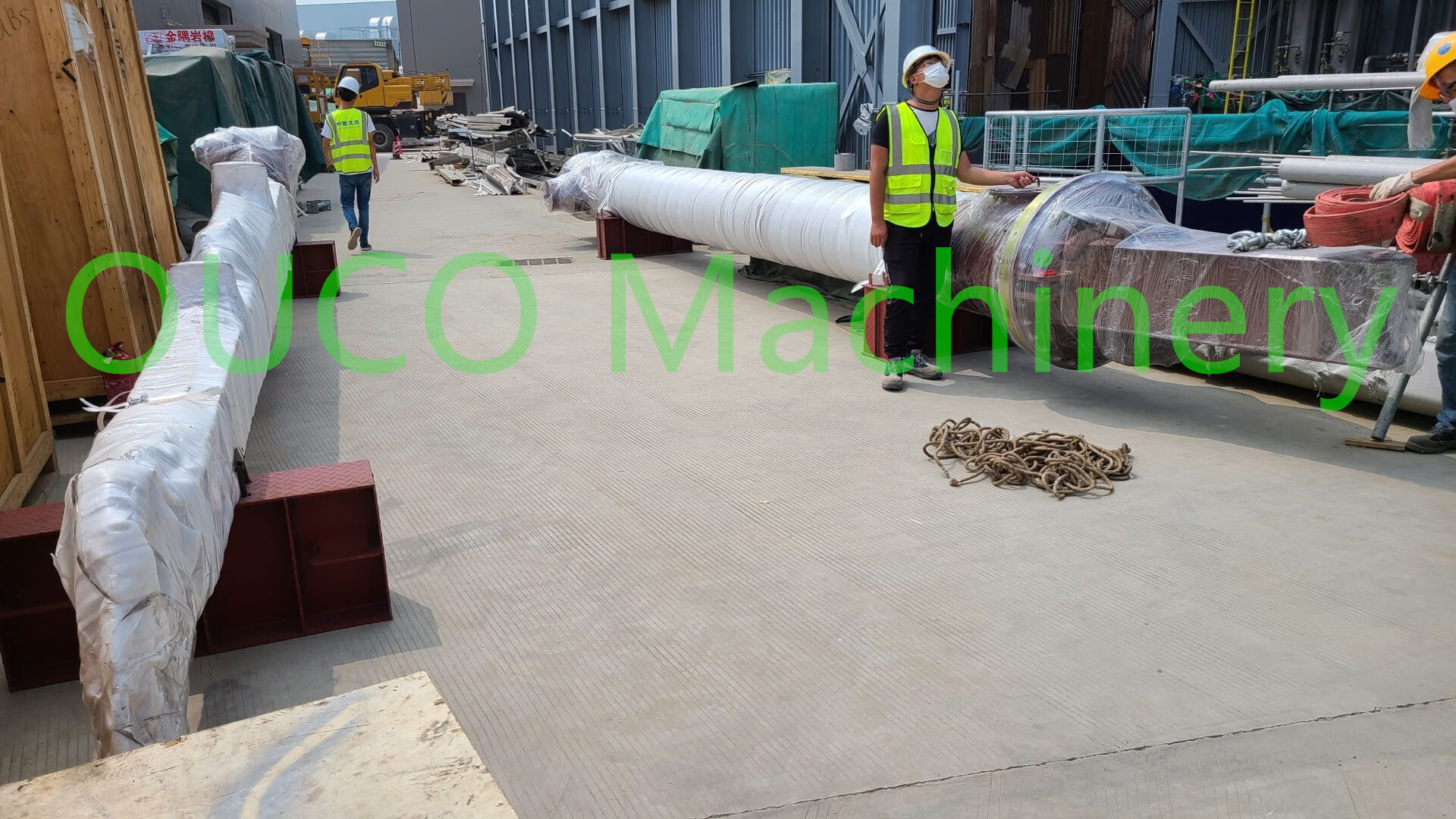

Transportation
Our Company
With years of experience, the OUCO Marine Group has its own designing team and manufacturing factory, excellent European management who has 47 years of experience on offshore business, which also provides after sales services overseas.
Our production line covers marine and offshore knuckle boom crane, telescopic crane, stiff boom crane, non-standard steel structure, more environmental-friendly operations and also truck crane with the range from 15t to 150t.Port industry which includes cranes, hoppers and grabs.
OUCO Machinery can build any type of handling equipment, according to our own design, but also according to provided designs.
We build products according to any certification requested by the client and are able to build them for working in, and under extreme heavy circumstances for working tempertures of - 40C accordingly.
